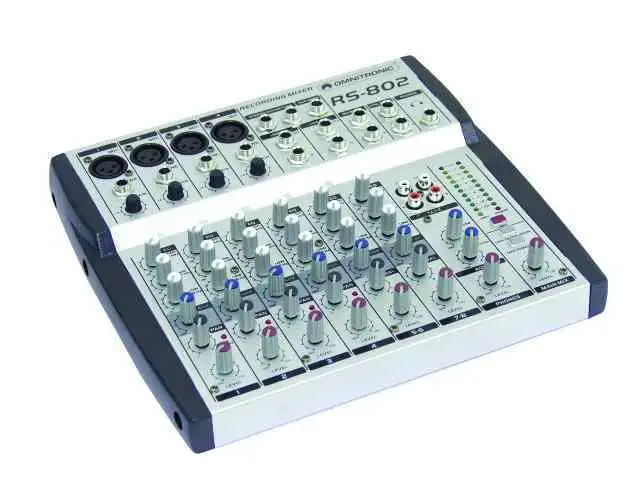

Omnitronic RS-802 mixer

Description

huendeskes
Parameters, product description - Omnitronic RS-802

Excellent layout 8-channel studio mixer

Low-noise 8-channel Mic/Line mixer

4 mono inputs with XLR connection, +48V phantom power and balanced line inputs

2 stereo inputs with balanced ?˝ jack connection

Stereo inputs can also operate in mono

3-band EQ on each input

Peak LED per mono input

Aux Send per mono channel for external effects and monitoring

Stereo Aux Return with balanced ?˝ jack sockets

Separate Main Mix, Booth and headphone outputs

Tape input can be routed to Master, Booth/headphone output

Precise 10-LED level meter

Power supply: 2x20 V AC, 50/60 Hz



Included power adapter

Power consumption: 15 W

Inputs:

4 mono XLR or balanced ?˝ jack

2 stereo balanced ?˝ jacks

1 Aux-Return balanced ?˝ jacks

1 Tape In RCA

Outputs:

1 Master-Out balanced ?˝ jacks

1 Control Room Out balanced ?˝ jacks

1 Aux-Send balanced ?˝ jacks

1 Tape Out RCA

Frequency response:

Microphone: 10 Hz - 60 kHz,
