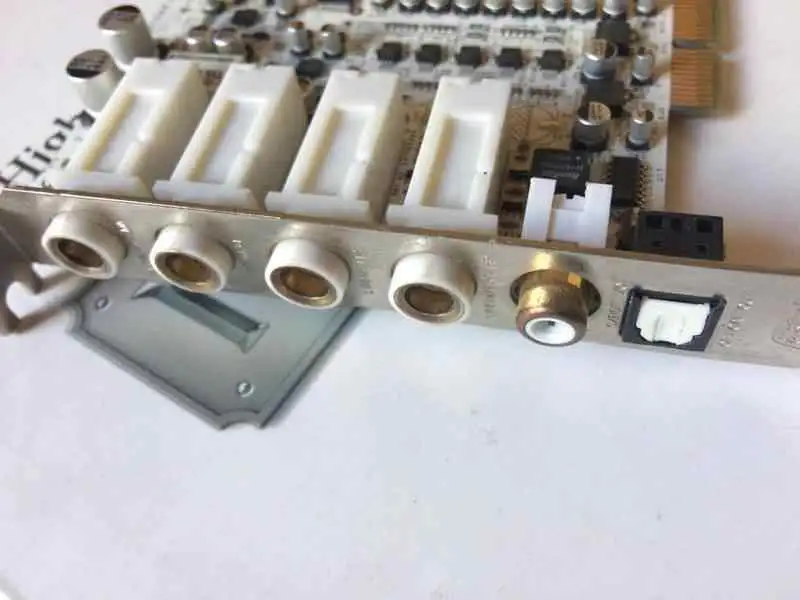

ESI Maya44 sound card

Description

huendeskes
Excellent sound card for sale. I want to buy an external sound card, so this one became redundant. Works under Win10. I mostly used it for recording vocals, guitar, and bass guitar.


Features:

24-bit / 192kHz output and 24-bit / 96kHz output
4 analog input and 4 analog output channels
4 in / 4 out full duplex recording and playback
balanced microphone input with +48V phantom power
headphone output with gain control
the unbalanced stereo line input (1...2) can be switched to a balanced mono microphone input
optical and coaxial (S/PDIF) digital output
3.3V / 5V compatible PCI card
EWDM drivers: MME, DirectSound, ASIO 2.0 and GSIF 2.0 support
Windows 7/Vista/XP/2000 and Mac OS X compatibility




Specifications:

Analog Audio



1. Sampling Rates

32, 44.1, 48, 88.2, 96 kHz for recording and playback
176.4 and 192 kHz for playback only



2. Analog Input

Connector type: ¼˝ TRS (stereo) jack for line in 1 and 2
Peak level: 0dBFS @ +6dBV
Programmable gain: -48dB … +24dB (in 1dB steps)
Impedance: 10K Ohm



3. Analog Output

Connector type: ¼˝ TRS (stereo) jack for the four-channel output
Peak level: 0dBFS @ +6dBV
Programmable gain: -48dB … +0dB (in 1dB steps)
Impedance: 33 Ohm (line outputs 1 and 2) and 1 Ohm (line outputs 3 and 4)



4. Microphone Preamplifier

Microphone preamplifier gain: +21dB
Peak level: 0dBFS @ 246mV
+48V phantom power supply
Impedance: 3K Ohm



5. Headphone Amplifier

Load impedance range: 32 … 300 Ohm
Output power: 125mW @ 32 Ohm per channel
