Cascone Castone CPA-500B other

Description

huendeskes
For sale is a barely used Castone CPA-500B power amplifier in original factory condition, flawless technical condition.

Trades are only interested in a flawless mixer with at least 12 microphone + 4 stereo inputs. (e.g., Behringer SL2442 Fx Pro)



Description of Castone CPA-500B Power Amplifier:



We recommend it for driving mid-range and high-frequency drivers of full-range loudspeakers or active systems with excellent sound quality.

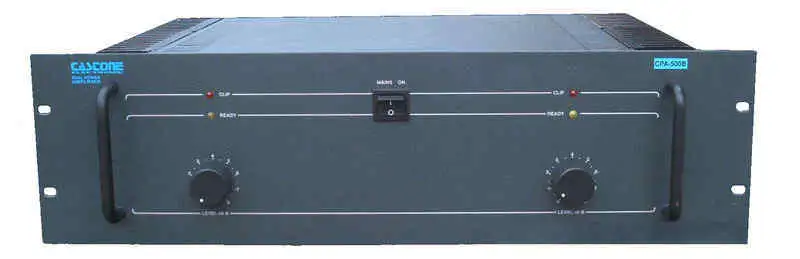

Front panel:



MAINS Power on/off switch

READY Operation ready indicator LED

LEVEL ch A Channel A volume control

LEVEL ch B Channel B volume control

CLIP Maximum output voltage indicator LED

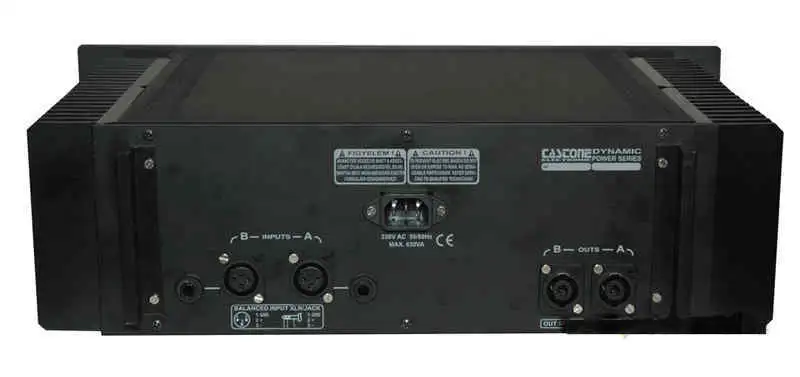

Rear panel:



INPUTS Input connector (6.3" JACK, XLR)

OUTS Speaker output connector (SPEAKON)

230V 50/60Hz Mains connector



Protections:



Use of mains fuses

Short-circuit current limiting

Soft mains power-on

Output DC voltage protection

Delayed speaker turn-on



Technical specifications



Product-specific data

Load impedance (stereo mode) 4-16 Ohm

Rated output power (4 Ohm) 2 x 250 W

Rated output power (8 Ohm) 2 x 190 W

Music output power (4 Ohm) 2 x 300 W

Music output power (8 Ohm) 2 x 225 W

Frequency response (-3dB breakpoint) 5 Hz - 45 kHz

Distortion factor (4 Ohm) 0.03 %

Signal-to-noise ratio min. 101 dB

Input balanced

Input sensitivity 0 dBm (775 mV)

Input impedance 20 kOhm

Damping factor 250



General data



Physical dimensions (rack) 19" RACK 3U front panel

Physical dimensions (W x H x D) 482 x 132 x 340 mm

Weight 12 kg

Rated power consumption max. 700 VA

Mains voltage 230 V
