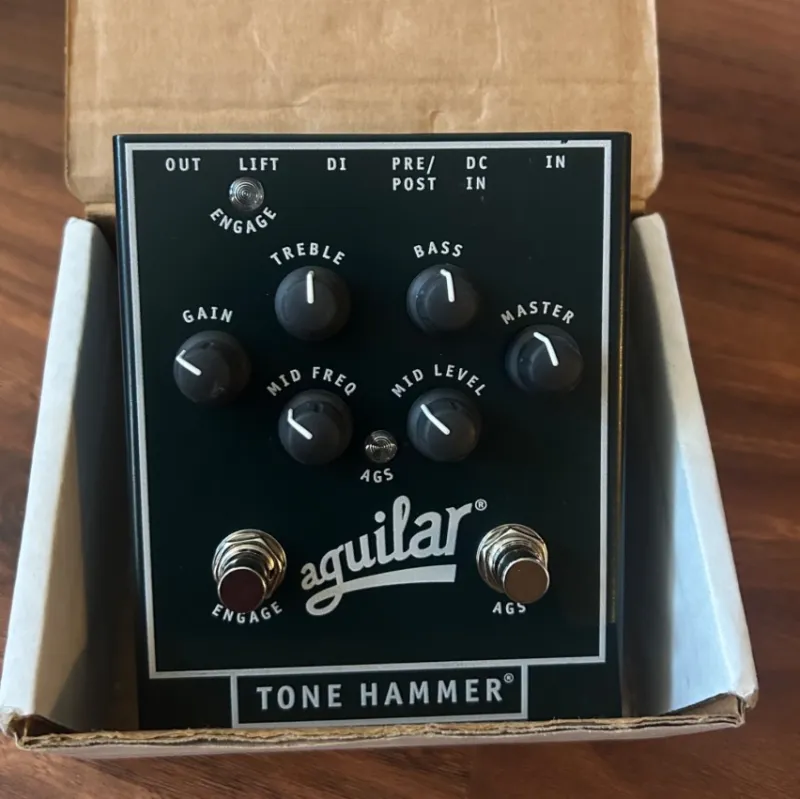

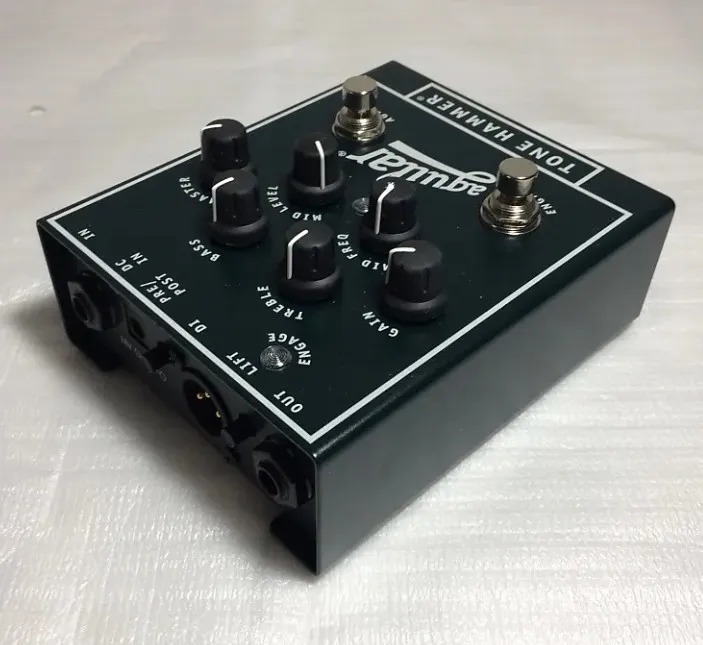

Aguilar Tonehammer Bass Preamp bass pedal

Description

Knobs
GainControls input sensitivity levelBass+/- 18 dB @ 40 HzTreble+/- 18 dB @ 4 kHzMid +/- 17 dB of cut or boostMid-Freq180 Hz to 1 kHzMaster Controls output level
Outputs
DIBalanced output, maximum output level 8 VRMS.Instrument ¼˝ output, maximum output level 4 VRMSPre/Post This will place the direct signal either pre or post EQ. Pre: Your signal goes to the D.I. XLR output before your Gain, AGS and EQ settings Post: Gain, AGS, EQ and Master settings will be sent to the D.I. XLR output jack
Ground Lift
Ground Lift If there is a hum when using the D.I, there may be a ground loop. In many cases, pushing in the Ground/Lift button can fix this problem
Switches
AGS SwitchToggles AGS on/off (orange LED indicates on)
Power
Battery2x9VExternal DC PowerThis is a standard 2.1mm DC jack. The center terminal polarity is negative. Compatible with 18-20 VDC regulated power supplies.
