Details

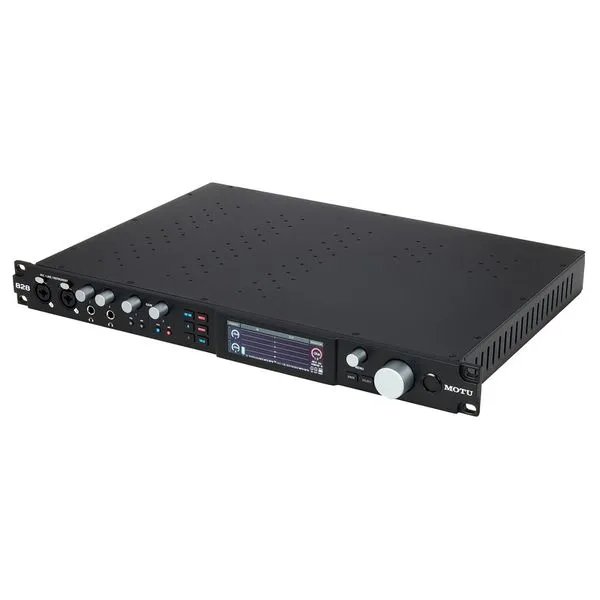

28 x 32 USB 3.1 Audio Interface with USB-C Connection Resolution: 24 bit 192 kHz ESS Sabre32 Ultra DAC-Technology DSP-controlled digital mixer with 24 inputs, 8 stereo busses and DSP effects (reverb, 4-band EQ, gate & compressor) High-resolution (480 x 128) 3.
9 LCD colour display Dynamic range line inputs: 120 dB THD+N line inputs: -114 dB Equivalent input noise microphone preamplifier: -129 dB Microphone preamplifier with +74 dB gain Dynamic range line outputs: 125 dB THD+N line outputs: -114 dB 48V phantom power, -20 dB pad, phase flip, remote control and dedicated inserts per microphone input 60 Simultaneously usable audio channels (28 inputs and 32 outputs) Dimensions (W x D x H): 482 x 311 x 44 mm Weight: 5 kg System requirements Interface: Windows 10 or later, Mac OSX 10.
13 or later Connections: 2 x Mic Instrument Line inputs: XLR jack 6.
3 mm combo 8 Line inputs: 6.
3 mm jack, balanced 8 DC-coupled line outputs: 6.
3 mm jack balanced 2 x XLR Main out 2 x ADAT input and output Coaxial SPDIF (24-bit 96kHz) 2 x Sendreturn 6.
3 mm jack balanced MIDI input and output Word clock input and output: BNC 2 Headphone outputs Foot switch input: 6.
3 mm jack USB-C connection (compatible with USB type A) 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since January 2024 Item number 583527 Sales Unit 1 piece(s) Recording Playback Channels 28x32 Number of Mic Inputs 2 Number of Line Inputs 10 Instrument Inputs 2 Number of Line Outs 10 Headphone Outs 2 Phantom power Yes Number of SPDIF Connectors 1 Number of ADAT Connectors 2 Numer of AESEBU Connectors 0 Number of MADI Connectors 0 Ethernet 0 Other Connectors No MIDI interface Yes Word Clock 1xIn, 1xOut Max.
sample rate (kHz) 192 kHz Max.
resolution in bit 24 bit USB Bus-Powered No Incl.
power supply Yes USB Version 3.
1 Width in mm 483 mm Height in mm 45 mm Connection Format USB port Type C Show more
