Details

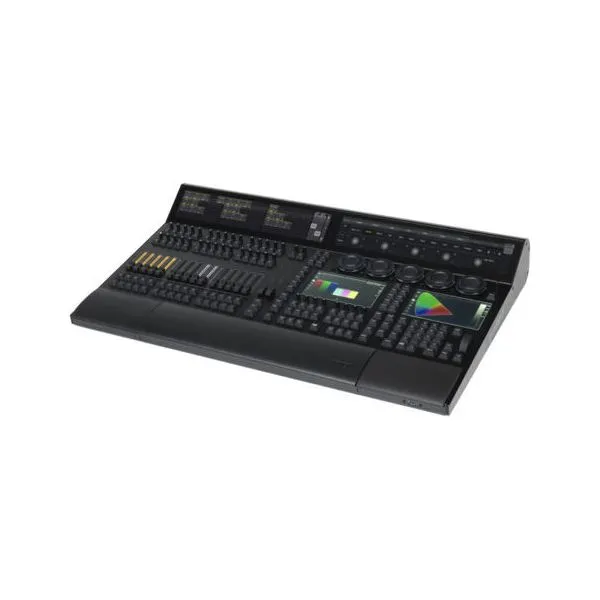

Lighting Control Desk Real-time control of up to 250,000 parameters per session in combination with grandMA3 processing unit Six DMX outputs One DMX input Two internal letterbox multi-touch screens Two internal multi-touch command screens Four external multi-touch screens can be connected 41 rotatable RGB backlit encoders Five backlit dual encoders 15 motorised and backlit 60 mm faders 60 independent playbacks 16 assignable x-keys Integrated keyboard drawer Built-in uninterruptible power supply (UPS) Two backlit and motorised A B 100 mm faders Individually backlit, dimmable and low-noise (clickless) buttons Technical data: Parameters: 16384 (HTPLTP) Parameter Mode 2: 4,096 (HTPLTP) Supply voltage: 100-240 V 5060 Hz Power: Max.300 VA Dimensions (W x D x H): 811 x 539 x 169 mm (closed drawer) Weight: 25 kg Connectors: One Power Twist TR1 Three etherCONRJ45 Six DMX512-A Out (5-pin XLR female) One DMX512-A In (5-pin XLR male) One MIDI In (5-pin DIN female) One MIDI Out (5-pin DIN female) One Linear Timecode In (3-pin XLR female) One Audio In (3-pin XLR female) One GPI General Purpose Interface (D-SUB DE9 female) for remote control Four display ports 1.
2 for external screens Two SPDIF In and Out Three USB 2.
0 (Type A) Three USB 3.
0 (Type A) Two LED desk lights (4-pin XLR female) Delivery contents: One dust cover Two MA LED desk lights One MA magnetic foil for labelling 15 faders 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since September 2019 Item number 474742 Sales Unit 1 piece(s) Preset Function Yes External Storage Yes DMX - Universes 6 max.
Channels 8192 Ethernet Yes
