Details

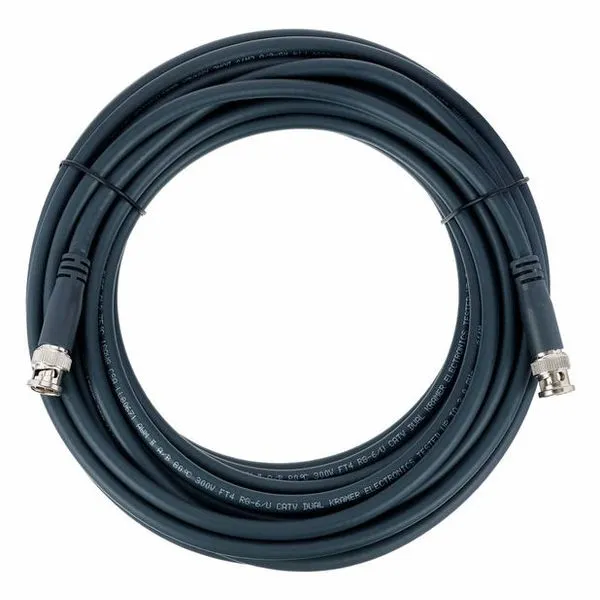

3G HD-SDI BNC Coaxial Cable Length: 10.70 m Made from a high-performance RG-6 coaxial cable with 75 Ohm BNC plugs at both ends Inner conductor: 18 AWG solid copper wire Dielectric: Foam skin Shielding: (A) 61% aluminium wire braid 34 AWG, (B) double foil Mylar with 25% overlap Outer sheath: PVC Colour: Dark grey Inner conductor diameter: 1.
0 mm Diameter of dielectric: 4.
6 mm Outer diameter: 7.
0 mm Impedance: 75 Ohm Ohmic resistance: 21.
8 Ohms km Capacitance: 53.
1 pF m Tested up to 3G 30 30-Day Money-Back Guarantee Available since July 2020 Item number 498283 Sales Unit 1 piece(s) Application Video Input connector BNC male Output connector BNC male Length 10,70 m Show more
