Details

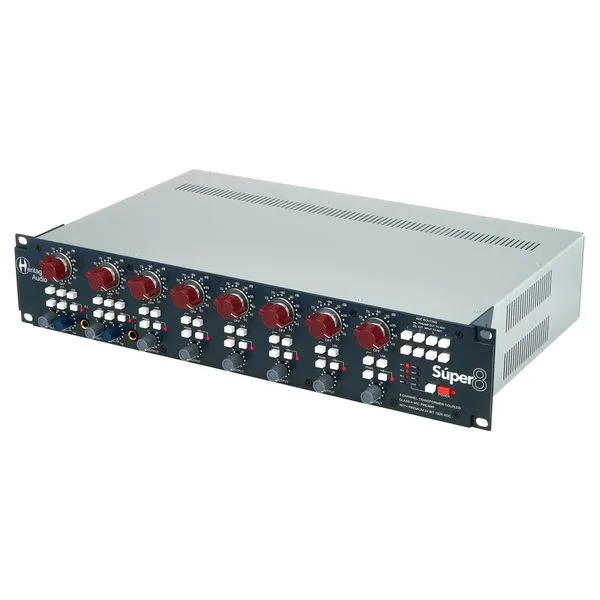

Microphone Preamplifier and ADDA Converter 8-Channel transformer-coupled Class-A microphone preamplifier and ADDA converter 24 bit 192 kHz 3-Stage Class-A preamps in 73 style Carnhill transformer Phantom power +48 V switchable per channel Low cut and phase reverse switchable per channel HP filter for channel 1 and 2: 20 - 250 Hz Construction: 19 3 U Dimensions (W x H x D): 482 x 88 x 280 mm Weight: 9.45 kg Incl.
external power supply unit Connections: 8 Microphone inputs: XLR 8 Line inputs: Sub-D25 2 HI-Z instrument inputs: 6.
3 mm jack 8 Line outputs: XLR 8 Line outputs: SubD-25 8 ADC return: SubD-25 2 ADAT outputs (SMUX) AESEBU SPDIF: Coax 9-pin Word clock input and output: BNC 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since October 2022 Item number 545506 Sales Unit 1 piece(s) Channels 8 Number of microphone inputs 8 Instrument input Yes Tubes No CompressorLimiter No Equalizer No De-Esser No Phantom power Yes Phase Reverse Yes External effect loops No Analogue Outputs Sub-D 25-pol, XLR Digitale Outputs ADAT, SPDIF, AESEBU Headphone connection No Level Meter No Design 19 3U
