Details

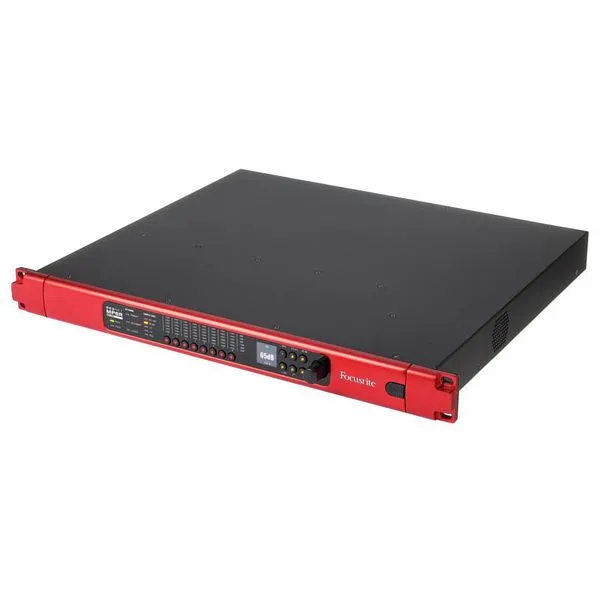

ADC with 8 Focusrite Mic Preamps for Dante Audio-over-IP Networks Up to 24-bit 192 kHz AES67 Compliant Gain range: 10 dB to 65 dB in 1 dB increments Frequency range: 20 - 40,000 Hz (± 0.1dB) 20 dB pad 48V Phantom power HP Filter and phase reverse switchable per channel Remote controllable functions for Yamaha CL and QL consoles: Gain, phantom power and HP filters LED level meter and OLED display Two integrated power supplies for redundant power supply Type: 19 1U Dimensions: 48.
2 x 4.
45 x 39.
4 cm (W x H x D) Weight: 5.
75 kg Connections: 8x XLR input 2x EtherCON NE8FBH-S (compatible with RJ45) for redundant network functionality 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since January 2019 Item number 455805 Sales Unit 1 piece(s) Amount Of Channels 8 AD Conversion Yes DA Conversion No Max.
Resolution 24 bit Max.
sampling rate 192 kHz SPDIF Connecor No AESEBU Connector No ADAT No Word clock No Number of analog inputs 8 Number of Analog Outputs 0 Headphone connection No Special Features Dante Ethernet Connection
Quick reviews
No one uploaded any reviews for this instrument. If you have experience with it, please help to others and upload it today.Upload review here »
