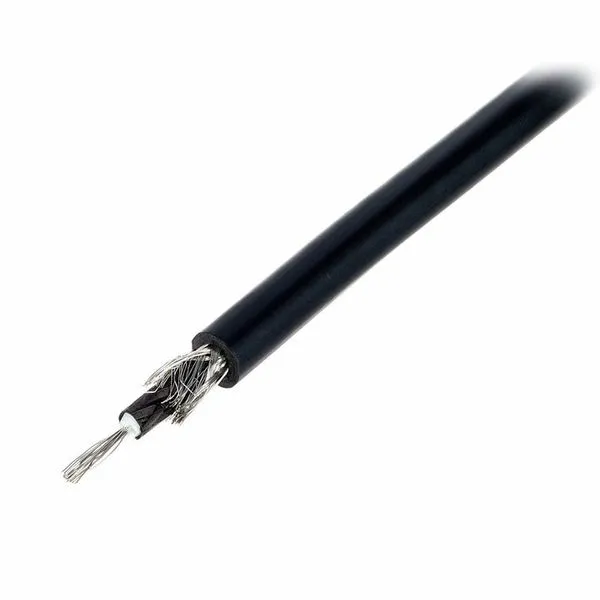

High End Instrument Cable For stage, studio or installations Very punchy, clear sound for bass, guitar, keyboard, etc.Thanks to special stranding and a very thick wire cross section Triple shielding by combining copper mesh and conductive carbon shield Low loss in transmission due to low capacitance Very flexible and easy to wind thanks to use of fine individual strands Extremely durable and robust thanks to a special, high-quality PVC sheath compound Technical data: Wire cross-section: 1 x 0.
50 mm² Jacket Diameter: PVC 7 mm Cu strand per wire: 28 x 0.
15 mm² Conductor insulation: PE 2.
4 mm Shielding: Double tinned copper mesh + PE layer Shielding factor: 100% Temperature range: -30°C to +70°C Fire load per metre: 0.
26 kWh Weight per 1 m: 66 g Electrical data: Capacitance conductorshield per 1 metre: 78 pF Conductor resistance per 1 km: 38.
2 Ohm Insulator resistance per 1 km: 1 G Ohm Available since July 2005 Item number 183601 Sales Unit 1 metre(s) Colour Black Diameter 0,5 mm²
