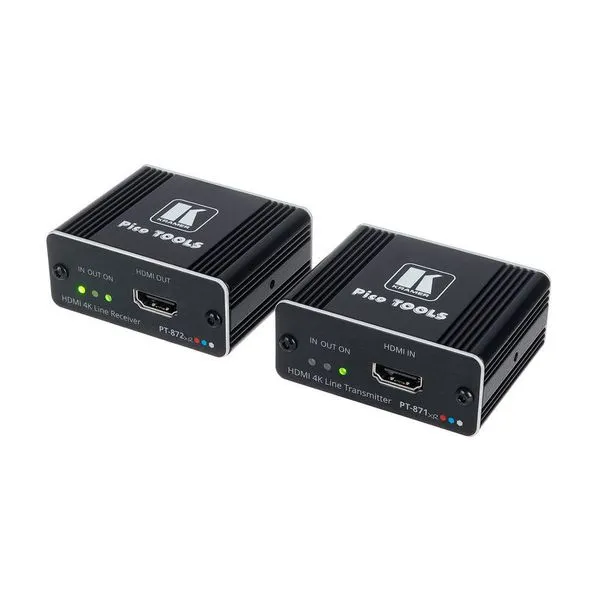

Set 4K HDR HDMI PoC extendertransmitter via DGKat 2.0 for long ranges Set consists of PT-871xr transmitter and PT-872xr receiver The HDMI signal is converted into a DGKat 2.
0 signal and can be transmitted up to 70 m 4K@60Hz (4:2:0) when using shielded UNIKAT cables HDR, HDMI 2.
0 and HDCP 2.
2 compatibility Nearly zero latency Two-way power supply I-EDIDPro Multi-channel audio expansion: up to 32 uncompressed digital stereo channels for studio surround sound support Input: 1x HDMI socket (PT-871xr) 1x DGKat: RJ-45 socket (PT-872xr) Output: 1x DGKat: RJ-45 socket (PT-871xr) 1x HDMI socket (PT-872xr) Transmitted data bandwidth: up to 18 Gbps (6 Gbps per graphics channel) Maximum resolution at high compression level: 3840x2160@60Hz (4:4:4) 24bpp Maximum resolution at standard compression level: 4096x2160@60Hz (4:4:4) 24bpp Standards compliance: HDR10, HDMI 2.
0, HDCP 2.
2 HDMI Support: Deep colour, x.
v.
Color, Lip Sync, HDMI Uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.
0 High compression range when using shielded UNIKAT cables: up to 60 m at 4K@60Hz (4:4:4) up to 70 m at 4K@60Hz (4:2:0) or Full HD (1080p at 60Hz 36bpp) High compression range when using Plenum HDKat cables: up to 40 m at 4K@60Hz (4:4:4), up to 50 m at 4K@60Hz (4:2:0) or Full HD (1080p @60Hz 36bpp) Standard compression range when using shielded UNIKAT cables: Up to 40 m at 4K@60Hz (4:4:4) Up to 70 m at 4K@60Hz (4:2:0) or Full HD (1080p @60Hz 36bpp) Power supply: 12 V DC 600 mA Dimensions: approx.
6.
2 x 5.
2 x 2.
5 cm Weight: 0.
2 kg 3030-Day Money-Back Guarantee 33-Year Thomann Warranty Available since August 2019 Item number 472265 Sales Unit 1 piece(s) Type Bundle
