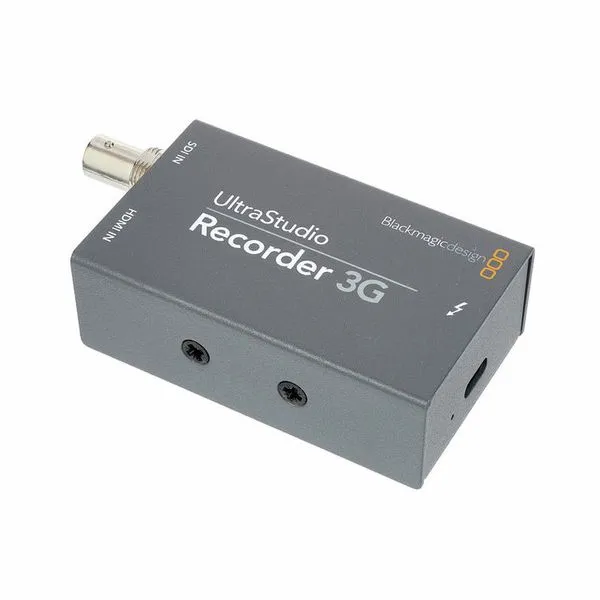

Video Capture Device Records uncompressed and compressed video in highest 10-bit quality and is compatible with all common video software, e.g.
DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC and many more SDI video inputs: 1x SDI rates 270 Mbit, 1.
5G, 3G SDI audio inputs: 16x channels embedded in SDHD HDMI video inputs: 1x HDMI audio inputs: 8x channels embedded in SDHD Computer interface: Thunderbolt 3 (Mac OS, Windows and Linux) Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, uncompressed 8 bit 4: 2:2, uncompressed 10 bit 4:2:2, uncompressed 10 bit 4:4:4 Included software: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic drivers for Mac OS and Windows Media Express, Blackmagic Desktop Video Utility and Blackmagic drivers for Linux Supported software applications: DaVinci Resolve, Adobe Premiere Pro CC, Adobe Photoshop CC, Sony Catalyst Production Suite, Grass Valley Edius, Tools On Air Just In, Softron MovieRecorder and Mreplay, Adobe Flash Media Live Encoder, Metus Ingest, Cinegy Capture Pro, Glookast Capturer, Burst Video [REC]Marker and Webclip2Go, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika SDI SD video standards: 525i59.
94 NTSC, 625i50 PAL SDI HD video standards: 20p50; 720p59.
94; 720p60; 1080p23.
98; 1080p24; 1080p25; 1080p29.
97; 1080p30; 1080p50; 1080p59.
94; 1080p60 1080PsF23.
98; 1080PsF24; 1080PsF25; 1080PsF29.
97; 1080PsF30 1080i50; 1080i59.
94; 1080i60 2K video standards: 2Kp23.
98 DCI; 2Kp24 DCI; 2Kp25 DCI; 2Kp29.
97 DCI; 2Kp30 DCI; 2Kp50 DCI; 2Kp59.
94 DCI; 2Kp60 DCI 2KPsF23.
98 DCI; 2KPsF24 DCI; 2KPsF25 DCI; 2KPsF29.
97 DCI; 2KPsF30 DCI SDI compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M AB and SMPTE ST2108-1 Metadata support via SDI RP 188SMPTE 12M-2 and Closed Captioning SDI audio sampling rate: Standard television sampling rate of 48 kHz and 24 bits SDI video sampling frequency: 4:2:2, 4:4:4 SDI colour accuracy: 8-, 10- and 12-bit RGB 4:4:4 up to 1080p30 and 8- and 10-bit YUV 4:2:2 in all standards SDI colour spaces: Rec.
601, Rec.
709, Rec.
2020 HDR support via SDI: HDR metadata packing, HLG and PQ transfer features Multi-rate support SDI video connection is switchable between SD and HD HDMI - SD video standards: 525i59.
94 NTSC, 625i50 PAL HDMI - HD video standards: 720p50, 720p59.
94, 720p60 1080p23.
98, 1080p24, 1080p25, 1080p29.
97, 1080p30, 1080p50, 1080p59.
94, 1080p60 1080i50, 1080i59.
94, 1080i60 HDMI audio sampling frequency: Standard TV sampling rate of 48 kHz and 24 bit HDMI video sampling frequency: 4:2:2 and 4:4:4 HDMI colour accuracy: 10- and 12-bit RGB 4:4:4 up to 1080p30 and 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards HDMI configuration: HDMI 2.
0a supports Deep Colour and HDR Automatically configures itself with the connected display HDMI colour space: Rec.
601, Rec.
709, Rec.
2020 HDR support via HDMI: HDR metadata packing, HLG and PQ transfer features Multirate support: SDI video connection is switchable between SD and HD Copy protection: HDMI input cannot record from copy-protected HDMI sources Hardware frame buffers: V210 (10-bit YUV), 2VUY (8-bit YUV), ARGB, BGRA (8-bit RGB), R210 (10-bit RGB), R12B, R12L (12-bit RGB)Dimensions: 92 x 45 x 25 mm Weight: 158 g Note: Requires a computer equipped with a Thunderbolt 3 USB-C port.
3030-Day Money-Back Guarantee 33-Year Thomann Warranty Available since July 2020 Item number 499590 Sales Unit 1 piece(s)
