Részletek

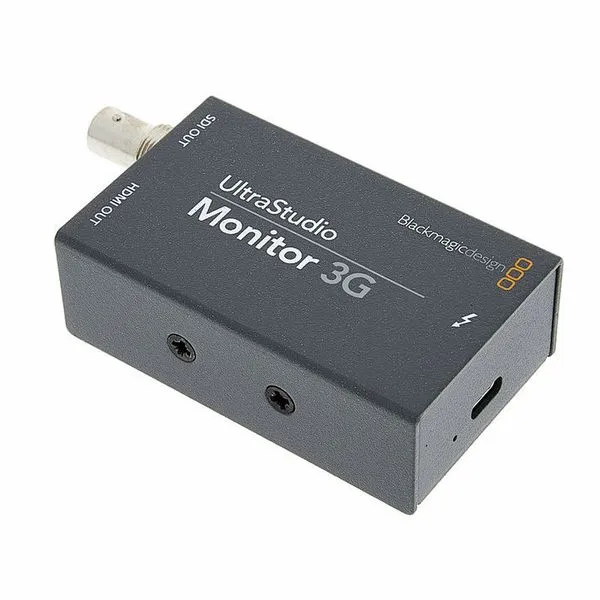

Video Output Device For 3G SDI and HDMI playback via Thunderbolt 3-equipped laptops or desktop computers Supports professional SDI and HDMI monitoring in 10-bit broadcast quality of material from common editing software such as DaVinci Resolve, Final Cut Pro X, Media Composer and Adobe Premiere Pro CC, as well as top-end broadcast graphics and titling systems SDI video outputs: 1x SDI rates 270 Mbit, 1.5G, 3G SDI audio outputs 16x channels embedded in SDHD HDMI video outputs: 1x HDMI audio outputs: 8x channels embedded in SDHD Computer interface: Thunderbolt 3 (Mac OS, Windows and Linux) Supported codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, uncompressed 8 bit 4: 2:2, uncompressed 10 bit 4:2:2, uncompressed 10 bit 4:4:4 Included software: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic drivers for Mac OS and Windows Media Express, Blackmagic Desktop Video Utility and Blackmagic drivers for Linux Supported software applications: DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC, Adobe Character Animator CC, Avid Media Composer, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Livestream Studio, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika SDI - SD video standards: - 525i59.
94 NTSC, 625i50 PAL SDI - HD video standards: 20p50; 720p59.
94; 720p60 1080p23.
98; 1080p24; 1080p25; 1080p29.
97; 1080p30; 1080p50; 1080p59.
94; 1080p60; 1080PsF23.
98; 1080PsF24; 1080PsF25; 1080PsF29.
97; 1080PsF30 1080i50; 1080i59.
94; 1080i60SDI - 2K video standards: 2Kp23.
98 DCI; 2Kp24 DCI; 2Kp25 DCI; 2Kp29.
97 DCI; 2Kp30 DCI; 2Kp50 DCI; 2Kp59.
94 DCI; 2Kp60 DCI 2KPsF23.
98 DCI; 2KPsF24 DCI; 2KPsF25 DCI; 2KPsF29.
97 DCI; 2KPsF30 DCI SDI compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M AB and SMPTE ST2108-1 Metadata support via SDI RP 188SMPTE 12M-2 and Closed Captioning SDI audio sampling rate: Standard television sampling rate of 48 kHz and 24 bits SDI video sampling frequency: 4:2:2, 4:4:4 SDI colour accuracy: 8-, 10- and 12-bit RGB 4:4:4 up to 1080p30 and 8- and 10-bit YUV 4:2:2 in all standards SDI colour spaces: Rec.
601, Rec.
709, Rec.
2020 HDR support via SDI: HDR metadata packing, HLG and PQ transfer features Multi-rate support SDI video connection is switchable between SD and HD HDMI - SD video standards: 525i59.
94 NTSC, 625i50 PAL HDMI - HD video standards: 720p50; 720p59.
94; 720p60 1080p23.
98; 1080p24; 1080p25; 1080p29.
97; 1080p30; 1080p50; 1080p59.
94; 1080p60 1080i50; 1080i59.
94; 1080i60 HDMI audio sampling rate: Standard TV sampling rate of 48 kHz and 24 bit HDMI video sampling frequency: 4:2:2 and 4:4:4 HDMI colour accuracy: 10- and 12-bit RGB 4:4:4 up to 1080p30 and 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards HDMI configuration: HDMI 2.
0a supports Deep Colour and HDR Automatically configures itself with the connected display HDMI colour space: Rec.
601, Rec.
709, Rec.
2020 HDR support via HDMI: HDR metadata packing, HLG and PQ transfer features Multirate support: SDI video connection is switchable between SD and HD Hardware frame buffers: V210 (10-bit YUV), 2VUY (8-bit YUV), ARGB, BGRA (8-bit RGB), R210 (10-bit RGB), R12B, R12L (12-bit RGB) Dimensions: 92 x 45 x 25 mm Weight: 160 g Note: Requires a computer equipped with Thunderbolt 3 USB-C port.
3030-Day Money-Back Guarantee 33-Year Thomann Warranty Available since September 2020 Item number 499574 Sales Unit 1 piece(s)
