Detalles

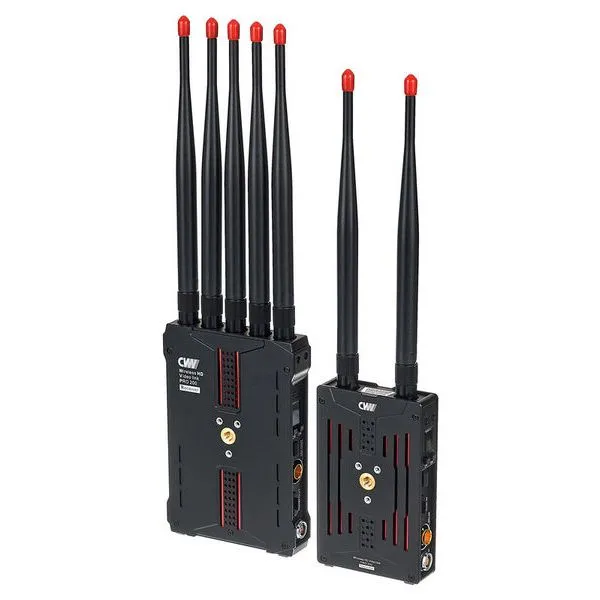

Zero Delay Video Radio Link Set For distances up to 200 m without DFS Ultra-low latency under 1 ms Range up to 200 m (line-of-sight) Video formats: 1080p (23.982425305060 fps), 1080i (5059.
9460), 720P (5059.
9460 fps) Uncompressed 4:2:2 at 10bit Audio formats: PCM, DTS-HD, Dolby True HD Frequency range (EU): 5150 - 5250 MHz 5725 - 5825 MHz 3GSDI and HDMI FullHD Bandwidth: 40MHz Without DFS (indoor application) Frequency selection: manual with buttons (control via LED display) Mounting options: ¼ internal thread (hot shoe adapter included) Time code transmission Battery mount: SONY F-Type Battery Plate Suitable NP-F batteries e.
g.
: Baxxtar NP-F970 Art.
496754 or Ansmann A-Son NP-F970 Art.
#497644 (both not included in delivery) Power consumption: 8W (Tx), 7W (Rx) Temperature operating range: 0°C to 40°C Dimensions TX (W x H x D): 74 x 120 x 35 mm RX dimensions (W x H x D): 95 x 146 x 35 mm Case dimensions (W x H x D): 335 x 121 x 310 mm Weight TX: 0.
226 kg Weight RX: 0.
310 g Weight complete: 3.
2 kg Colour: Black Scope of delivery: High-quality case with custom-fit foam 1 x Transmitter (with NP-F battery mount + antennas) 1 x Receiver (with NP-F battery mount + antennas) 2 x BNC cable (80 cm) 1 x Power supply unit 2 x DC adapter cable (D-Tap to 2pin Lemo compatible) Hot shoe adapter for both units 1 x V-Mount adapter 9 x Antennas Note: In the manual of some models CVW refers to 11 channels.
For the European market, CVW has only had 4 channels certified: Available channels or frequencies: Channel 1: 5170 GHz, Channel 2: 5230 GHz, Channel 3: 5755 GHz, Channel 3: 5795 GHz Available since April 2021 Item number 516972 Sales Unit 1 piece(s) Transmission Latency 1 ms Transmission range [m] 200 m Transmission Rate (Gbits) 6 Max Resolution 1080p60 HDMI Input Yes SDI Input Yes HDMI Output Yes SDI Output Yes Battery operation Optional Frequency Band (GHz) 5 GHz EU registration free Yes
