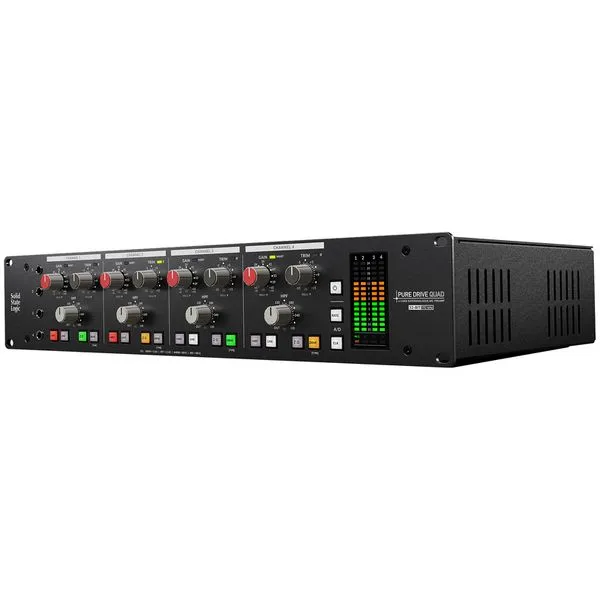

4-Channel Microphone Preamplifier AD converter (up to 192 kHz 32-bit) and 12x12 USB audio interface (44.1 48 kHz - 4x analogue + 8 ADAT input channels, 4 AES + 8 ADAT output channels) SuperAnalogue PureDrive microphone preamp technology from the ORIGIN console Stepped gain control with up to +65 dB gain 31-Stage trim control with precise 1 dB steps 3 Modes for each preamp - Clean, Classic-Drive and Asymmetric-Drive MicLine input switching 4 Input impedance options for mic preamps +48V phantom power Polarity switching and tunable high-pass filter Cascadable via link connection (ADAT) Format: 19 2U Connections: 4x Combo mic line input: XLR 6.
3 mm jack 4x Insert return line input: Sub D-25 4x Hi-Z DI instrument input unbalanced 4x Line output insert send: XLR AESEBU input and output: XLR ADAT input and output Word Clock input and output: BNC USB 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since January 2024 Item number 578436 Sales Unit 1 piece(s) Channels 4 Number of microphone inputs 4 Instrument input Yes Tubes No CompressorLimiter No Equalizer No De-Esser No Phantom power Yes Phase Reverse Yes External effect loops Yes Analogue Outputs XLR Digitale Outputs ADAT Headphone connection No Level Meter Yes Design 19 2U
