Details

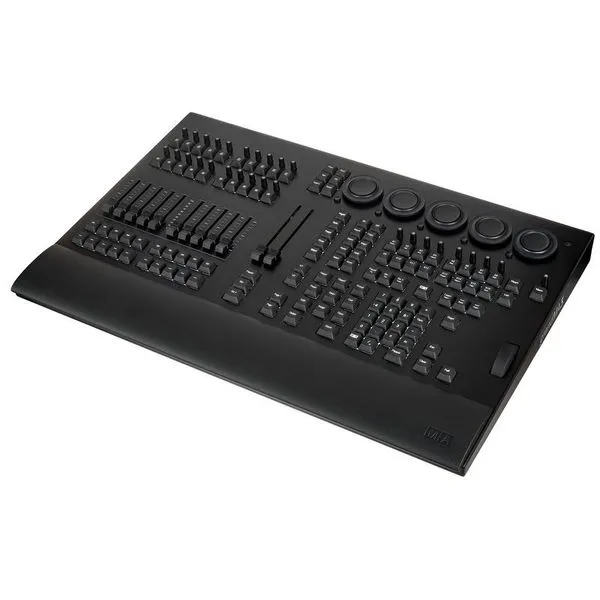

Lighting Console Real-time control of up to 4,096 parameters MA motherboard with pre-installed grandMA3 onPC software Only a touchscreen has to be connected for operation (not included) Layout of the command section identical to the grandMA3 onPC Command Wing 29 Rotatable RGB backlit encoders 5 Dual encoders 10 Motorised 60 mm faders 40 Independent playbacks 16 Assignable x buttons 2 Motorised A B 100 mm faders 1 Level wheel Individually backlit, dimmable and low-noise (clickless) buttons Power supply: 100 - 240 V ~ 5060 Hz Performance: max.100 VA Weight: 12 kg Dimensions: 620 x 427 x 112 mm Note: A grandMA3 onPC system supports a maximum of 4096 parameters Connections: 2 x RJ45 2 x DMX512-A Out (5pin XLR female) 1 x DMX512-A In (5pin XLR male) 1 x MIDI In (5pin DIN female) 1 x MIDI Out (5pin DIN female) 1 x Linear Timecode In (3pin XLR female) 1 x Audio in (mini jack 3.
5mm) 1 x Audio out (mini jack 3.
5mm) 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control 4 x DisplayPort 1.
2 for external screens 2 x USB 2.
0 (type A) 2 x USB 3.
0 (type A) 1 x LED desk lamp (4pin XLR female) Current input: IEC 30 30-Day Money-Back Guarantee 3 3-Year Thomann Warranty Available since October 2020 Item number 492147 Sales Unit 1 piece(s) Preset Function Yes External Storage Yes DMX - Universes 8 max.
Channels 4096 Ethernet Yes
